American Standard Electric Strike (Long Panel)
Designed for secure access, this long panel electric strike offers 500kg holding strength and stainless steel durability. Operating at 12V DC, it suits wooden, metal, or PVC doors, with signal output and customizable fail-safe or fail-secure modes.
Description
Models Specifications
SWC/EST113
SWC/EST113S

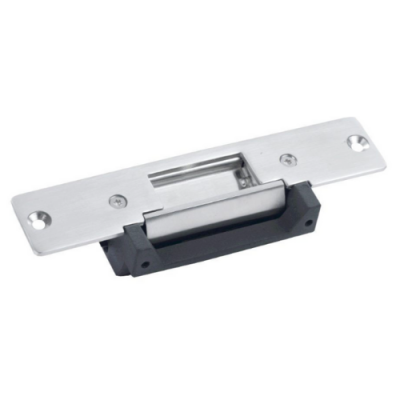

SWC/EST113
| Model | SWC/EST113 |
| Product Type | American Standard Electric Strike (Long Panel) |
| Lock Size | 165x32x33(mm) |
| Holding Strength | 500KG |
| Lock Structure | Stainless Steel |
| Input Voltage | DC12V±10% |
| Working Current | 200mA |
| Suitable Temperature | -10℃~+55℃ (14-131℉) |
| Door Type Applicable | Wooden Door, Metal Door, PVC Door |
| Signal Output | No |
| Security Type | Lock When Power off (Standard) Unlock When Power off (Customizable) |
| Weight | 0.4KG |

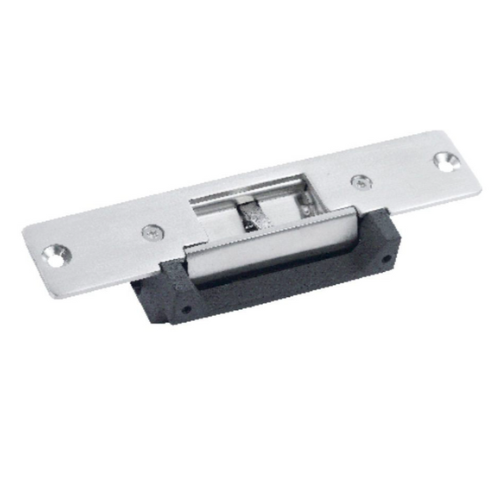

SWC/EST113S
| Model | SWC/EST113S |
| Product Type | American Standard Electric Strike (Long Panel) |
| Lock Size | 165x32x33(mm) |
| Holding Strength | 500KG |
| Lock Structure | Stainless Steel |
| Input Voltage | DC12V±10% |
| Working Current | 200mA |
| Suitable Temperature | -10℃~+55℃ (14-131℉) |
| Door Type Applicable | Wooden Door, Metal Door, PVC Door |
| Signal Output | Yes |
| Security Type | Lock When Power off (Standard) Unlock When Power off (Customizable) |
| Weight | 0.4KG |
