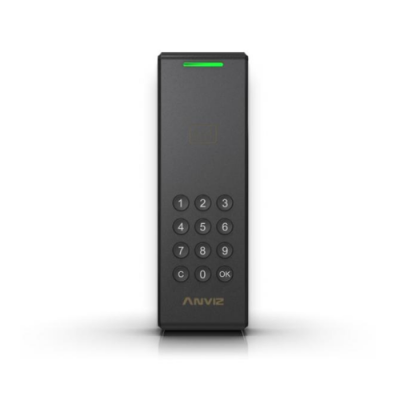

C2 KA
Anviz C2 KA is a traditional RIFD access control device. With the creation of C2 KA, Anviz has now one more comprehensive application. Based on high-speed ARM CPU and Linux system platform. C2 KA gives the ability to deliver a fast matching speed and rapid responses while handling large amounts of data.
Description
Specifications
Specifications
| Product Name | C2 KA |
| Identification Mode | Password, Card |
| RFID Options | 125kHz EM & 13.56MHz MIFARE |
| Max. Users | 10,000 |
| Max. Cards | 10,000 |
| Max. Logs | 100,000 |
| Time Attendance Mode | – |
| Group, Time Zone | 16 groups, 32 time zones |
| Work Code | – |
| Short Message | – |
| WebServer | – |
| Record Auto Inquiry | – |
| Daylight Saving | – |
| Voice Prompt | Voice |
| Multiple Language | – |
| Software | CrossChex Standard |
| CPU | Linux 1.0 GHz |
| Sensor | – |
| Scanning Area | – |
| Display | – |
| Keypad | Physical Button |
| Dimensions(W x H x D) | 50x59x25mm (1.97″x2.26″x0.98″) |
| Working Temperature | -10°C~60°C (14°F~140°F) |
| Humidity | 20% to 90% |
| PoE | IEEE802.3af/at |
| Power Input | DC12V |
| IP Grade | IP65 |
| TCP/IP | Yes |
| RS232 | – |
| RS485 | Yes |
| USB Host | – |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Relay | Yes |
| I/O | Door Contact/Exit Button |
| Tamper Alarm | Yes |
| Wiegand | IN & OUT |
