Electric Bolt Series Brackets
This stainless steel bracket is designed for frameless glass doors with 90° or 180° swing. Suitable for 8–15mm thick glass, it provides a durable, secure mounting solution for electric bolt locks in modern access control systems.
Description
Models Specifications
SWC/DB80U
SWC/DB80L

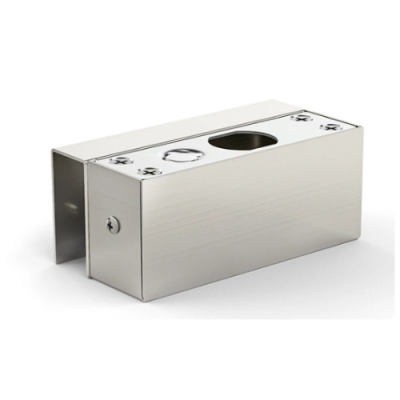

SWC/DB80U
| Model | SWC/DB80U |
| Product Type | The Stainless Steel Bracket for Frameless Glass Door |
| Size | 205Lx58Wx46H (mm) |
| Material Science | Stainless steel |
| Glass Thickness | 8~15mm |
| Opening Model | 90 or 180 Degree Swing Door |
| Application of lock | SWC/DB81/81T/82/83/85/87 |
| Weight | 1.6KG |

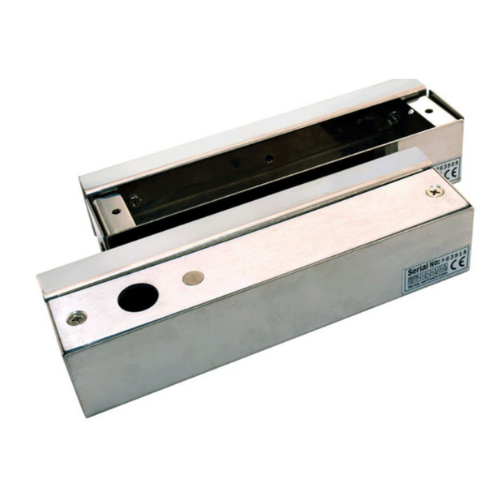

SWC/DB80L
| Model | SWC/DB80L |
| Product Type | The Stainless Steel Bracket for Frameless Glass Door |
| Size | 55Lx40Wx30H (mm) |
| Material Science | Stainless steel |
| Glass Thickness | 10~15mm |
| Opening Model | 90 or 180 Degree Swing Door |
| Application of lock | SWC/DB81/81T/82/83/85/87 |
| Weight | 0.3KG |
