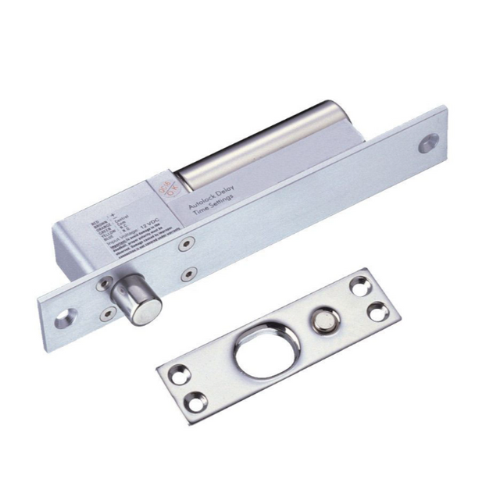

Intelligent Electric Bolt Lock
The Intelligent Electric Bolt Lock offers advanced security with signal output and time delay features. Suitable for wooden, glass, metal, and fireproof doors, it operates on 12V DC with a “locked when energized” function for reliable access control.
Description
Models Specifications
SWC/DB83DST
SWC/DB83DST
| Model | SWC/DB83DST |
| Product Type | Intelligent Electric Bolt Lock |
| Lock Size | 205Lx35Wx40(mm) |
| Strike | 90Lx25x2(mm) |
| Input Voltage | DC 12V ± 10% |
| Start Current | 950mA |
| Working Current | 110mA |
| Door Type Applicable | Wooden door, Glass door, Metal door, Fireproof door |
| Time Delay | Yes |
| Signal output | Yes |
| Security Type | Locked when energized |
| Weight | 0.72KG |
