P7

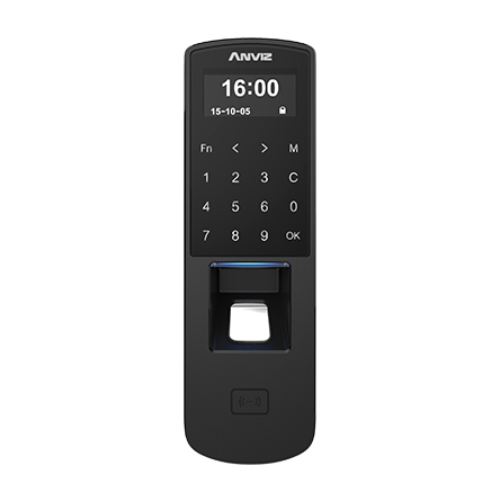

P7 is a new generation access control device of Anviz. The P7 adopts touch activation technologies in fingerprint sensor and keypad easy for user operation. As an access control, which are designed with PoE communication and access interface separation, make the P7 easy for Installation and cost down the labor.
Description
Specifications
Specifications
| Product | P7 |
| Activation Mode | Touch |
| Scan Area | 22mm*18mm |
| Resolution | 500 DPI |
| Display | 128*64 OLED |
| Fingerprint Capacity | 5000 |
| Card Capacity | 5000 |
| Log Capacity | Max 50,000 Logs |
| Applicable Situation | Max 5000 Users |
| Identification Mode | FP,Card, ID+FP,ID+PW, PW+Card, FP+Card |
| Identification Time | <0.5S |
| Communication Interface | RS485, Mini USB Slave, TCP/IP/Wiegand Out&In |
| Card Reader Module | EM RFID, Optional MiTare |
| Workcode | 6-digit |
| Short Message | 50 |
| Relay | Relay Output (COM, NO, NC or Direct Lock Control) |
| Door Open Sensor | Yes |
| Tamper Alarm | Yes |
| PoE | Standard IEEE802.3af and IEEE802.3at |
| Operating Voltage | DC 12V |
| Size | 54(w)170(h)41(d)mm |
| Temperature | -13°F/-25°C~158°F/70°C |
