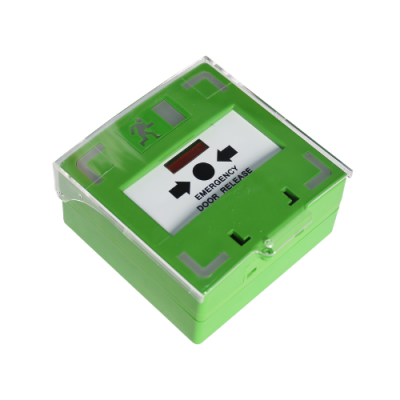

Ressetable Switch Call Point
The DCP-110 and SCP-100 are compact access control devices with durable ABS+PC construction. Both offer N.O./N.C. & COM output (125V/3A max), while the DCP-110 features dual-color indicators, configurable buzzer, and operates on DC12V\~24V with low standby and operation current.
Description
Models Specifications
DCP-110
SCP-100
DCP-110
| Model | DCP-110 |
| Power Supply | DC12V~24V ±5% |
| Operation Current | DC12V: 18mA (standby)/75mA (operation) ±5% DC24V: 11mA (standby)/41mA (operation) ±5% |
| Buzzer | Configurable (silent/interval/continuous) |
| Indicator | Dual-color (red/green); Red can blink/off/on |
| Output | N.O./N.C. & COM (125V/3A max load) |
| Material | ABS + PC |
| Dimensions | 90L × 93W × 45H (mm) |
| Weight | 208g (incl. packaging) |
| Brochure | SWC RSCP |
SCP-100
| Model | SCP-100 |
| Power Supply | – |
| Operation Current | – |
| Buzzer | – |
| Indicator | – |
| Output | N.O./N.C. & COM (125V/3A max load) |
| Material | ABS + PC |
| Dimensions | 90L × 93W × 45H (mm) |
| Weight | 208g (incl. packaging) |
