VP30

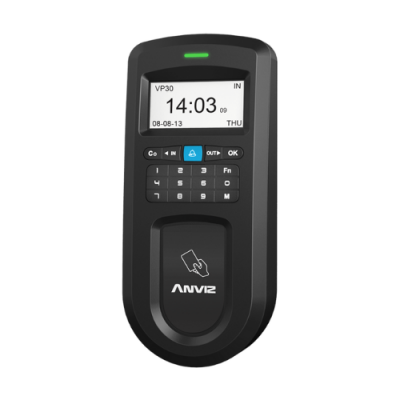

VP30 card access control and time attendance is a professional access control system developed for small to medium size businesses for security. It integrates RFID, burglar alarm, time attendance and access control functions etc.,with fashionable and elegant appearance and reliable quality.
Description
Specifications
Specifications
| Product Name | VP30 |
| Activation mode | Touch |
| Scan Area | 22mm×18mm |
| Resolution | 500 DPI |
| LCD | 128×64 white LCD |
| Fingerprint Capacity | 2,000 (VF30) |
| Card Capacity | 2,000 (VF30) / 20,000 (VP30) |
| Log Capacity | 50,000 (VF30) / 200,000 (VP30) |
| Identification Mode (VF30) | FP, Card, PW |
| Identification Mode (VP30) | Card, PW |
| Identification Time | <0.5 Sec |
| Communication Interface | RS485, Mini USB Slave, PoE-TCP/IP, Wiegand In/Out |
| Card Reader | Standard EM Card, Optional Mifare |
| Fingerprint Image Display | Yes |
| Self-defined Status | 16 Customizable time and attendance status |
| Workcode | 6-digit work code |
| Short Message | 50 |
| Scheduled Bell | 30 |
| Relay | DC 12V, Relay Output (COM, NO, NC) |
| Door Open Sensor | Yes |
| Tamper Alarm | Yes |
| Operating Voltage | DC 12V |
| Dimensions(W×H×D) | 80×180×40mm (3.15×7.1×1.6″) |
| Temperature | -30°C ~ 60°C |
| Ingress Protection Rate | IP53 (Optional Waterproof Cover) |
| Certificates | CE, FCC, RoSH |
| Software | Anviz Crosschex Standard |
