Sale!

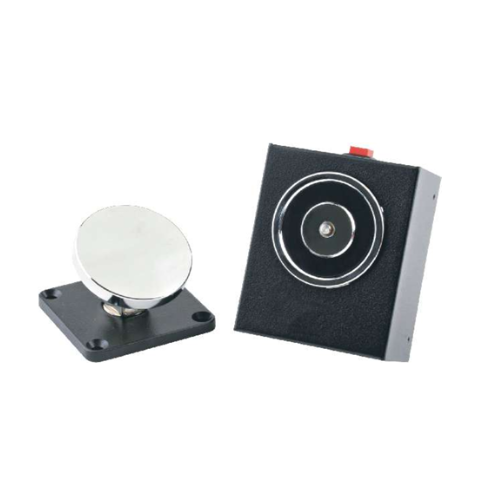

Wall Mount Door Holder
Ideal for secure door access, this compact magnetic lock offers a 50kg holding force and optional manual release. Designed for wooden, glass, metal, and fireproof doors, it ensures fail-safe security with low power consumption and flexible voltage options.
Category: ELECTRIC LOCKS
Request Quote Description
Models Specifications
SWC-DC52
SWC-DC52
Model | SWC-DC52 |
Lock Size | 70L x 40W x 85H (mm) |
Armature Plate Dimension | 65L x 65W x 53H (mm) |
Holding Force | 50kg (110Lbs) |
Optional | Manual door release button |
Lock Signal | No |
Input Voltage | DC24V (DC12V need order) |
Working Current | 24V/90mA (12V/180mA) |
Door Type Applicable | Wooden / Glass / Metal / Fireproof door |
Security Type | Power off to open |
Weight | 0.9kg |
