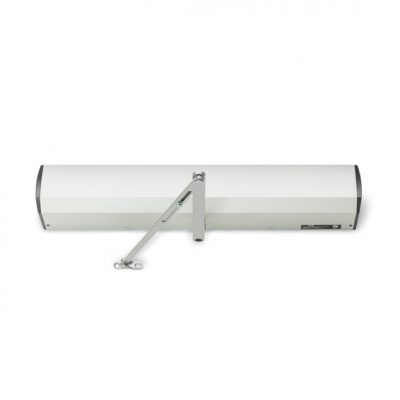

The Benchmark Series operators are low-energy electromechanical operators designed for primarily automatic openings that sometimes require manual opening.
Description
FEATURES
The Benchmark low-energy operators are electrically powered and are cost-effective for retrofitting an activated or manual door. The 9130, 9140, and 9150 Series meet ANSI/BHMA A156.19 and ANSI A117.1 standards, are American Disabilities Act (ADA) compliant, UL-listed and feature a 2-year limited warranty.
The operators feature a Push’N Go activation, providing easy access for people with disabilities and the elderly. The Push’N Go feature takes over when a pedestrian manually opens the door to five degrees, then holds the door fully open for 1-30 seconds, depending on the time delay. Power Boost provides additional closing force in severe wind.
Benefits
- UL Listed for self-closing doors without hold
open, UL 325 - Tested and certified under ANSI 156.19
- ADA compliant
- Opening time from full close to backcheck is no faster than 3 seconds
- Less than 15 lbs. to open door manually on-board power supply (Benchmark 24VDC output and Senior Swing 24V AC or 24V DC output) to power card readers, actuators and safety circuits
Electrical data
2800, 9500 Series
- 120 VAC 60Hz input at 2.5 AMPS (2800 and
9500 Series) - 240 VAC 50/60 Hz at 2.5 AMPS (2800 and
9500 Series) - 24 VAC output at 1.5 AMPS (protected by
self-resetting thermal fuse) - 24 VDC available with SO kit included
9100 Series - 120 VAC 60Hz input at 1 AMPS
- 24 VDC output at 2.5 AMPS
Overview
The LCN® electromechanical automatic operators are designed for durability
and extended performance when used in primarily automatic applications. The
electromechanical gearbox acts as a manual closer when the door is not automated
or power is lost.
The low energy electromechanical Senior Swing (2800 and 9500 Series) is LCN’s
toughest operator—designed specifically for medium to heavy duty use in mostly
automated applications. The Senior Swing offers a digital control suite that provides
precise control of a large range of built-in functions.
The low energy Benchmark operator (9100 Series) is designed for low to medium use
commercial applications, also for primarily automated applications. With its slim
design, the Benchmark is great for interior door applications when aesthetics are a
concern.
FEATURES
The Benchmark low-energy operators are electrically powered and are cost-effective for retrofitting an activated or manual door. The 9130, 9140, and 9150 Series meet ANSI/BHMA A156.19 and ANSI A117.1 standards, are American Disabilities Act (ADA) compliant, UL-listed and feature a 2-year limited warranty.
The operators feature a Push’N Go activation, providing easy access for people with disabilities and the elderly. The Push’N Go feature takes over when a pedestrian manually opens the door to five degrees, then holds the door fully open for 1-30 seconds, depending on the time delay. Power Boost provides additional closing force in severe wind.
Benefits
§ UL Listed for self-closing doors without hold
open, UL 325
§ Tested and certified under ANSI 156.19
§ ADA compliant
§ Opening time from full close to backcheck
is no faster than 3 seconds
§ Less than 15 lbs. to open door manually
on-board power supply (Benchmark
24VDC output and Senior Swing 24V AC
or 24V DC output) to power card readers,
actuators and safety circuits
Electrical data
2800, 9500 Series
§ 120 VAC 60Hz input at 2.5 AMPS (2800 and
9500 Series)
§ 240 VAC 50/60 Hz at 2.5 AMPS (2800 and
9500 Series)
§ 24 VAC output at 1.5 AMPS (protected by
self-resetting thermal fuse)
§ 24 VDC available with SO kit included
9100 Series
§ 120 VAC 60Hz input at 1 AMPS
§ 24 VDC output at 2.5 AMPS
